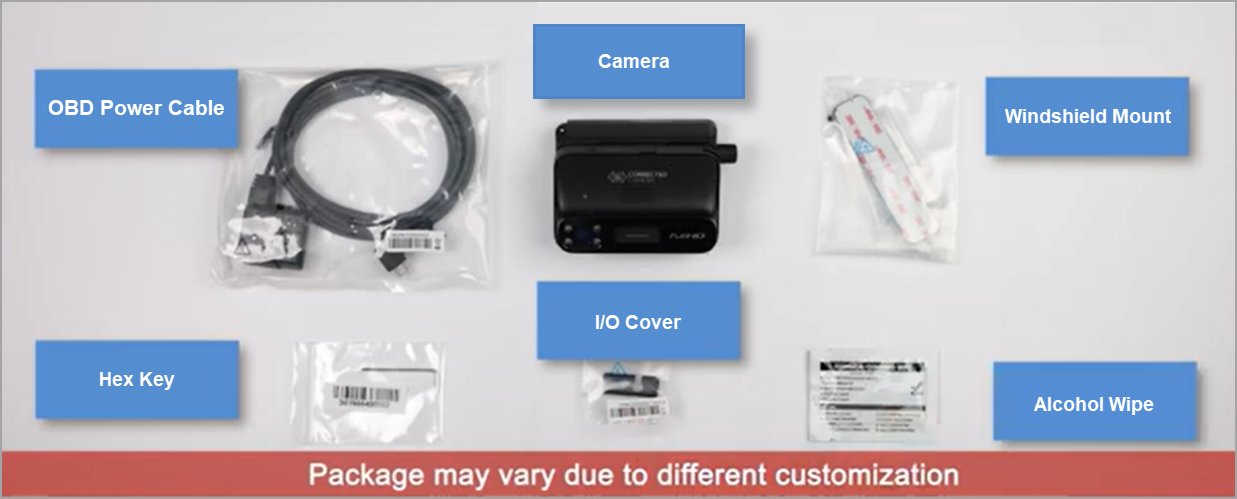

Package Contents:

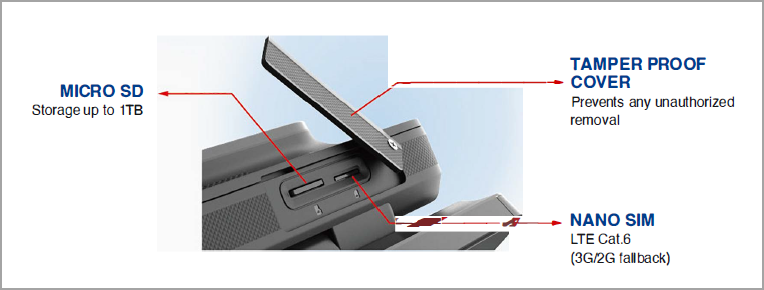

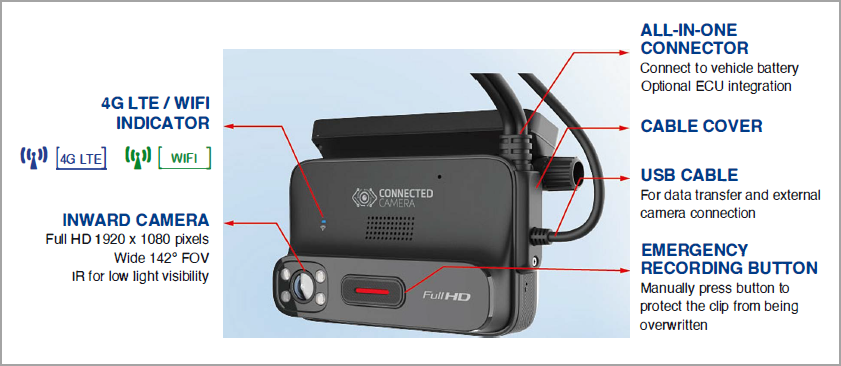

At a Glance:

Installation Steps:

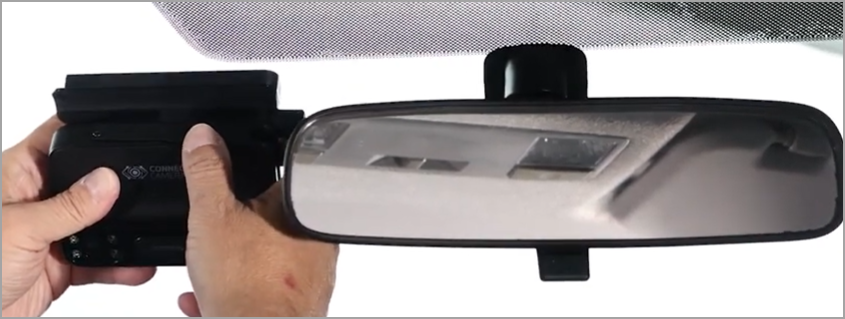

1. Find the right spot to install the camera. Do not block your view of the road or the rear view mirror.

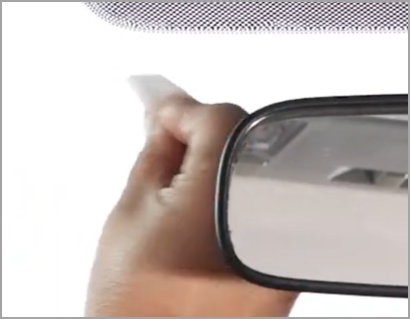

2. Use the alcohol wipe to clean off the windshield where the adhesive will be placed and allow 30 seconds to dry before proceeding to the next step.

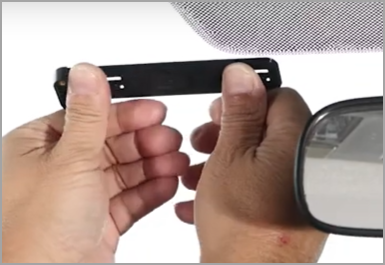

3. Peel off the protective cover over the adhesive strip and attach the Windshield Mount to the windshield. Press the adhesive to the windshield thoroughly. Do not attach the Windshield Mount with the camera already attached.

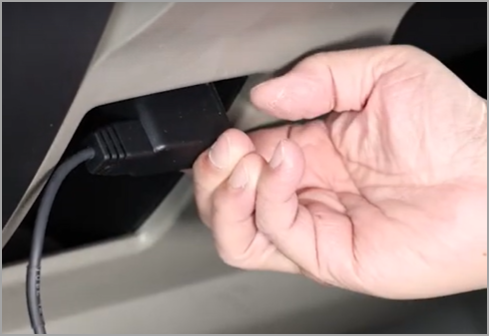

4. Connect the OBD Power Cable to the vehicle's OBD port. The OBD port is usually located under the dashboard but may vary by manufacturer.

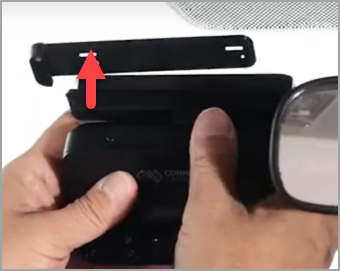

5. Attach the camera to the Windshield Mount by pressing it in and then sliding it to the left. You should hear a click.

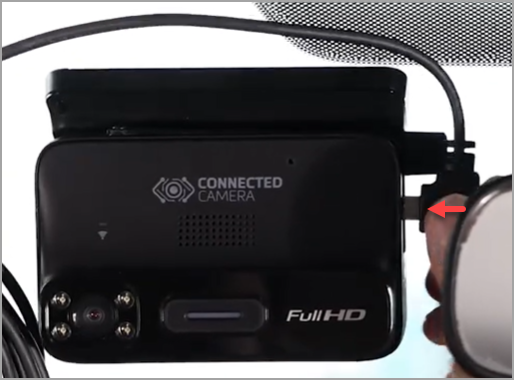

6. Connect the Mini-DP to the device, turn the vehicle on, and check that the LED indicator light  is lit.

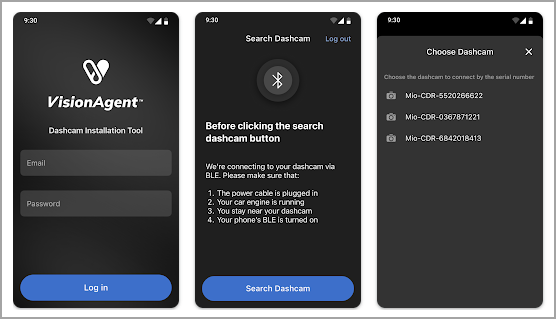

7. Download and launch the VisionAgent app  from your mobile device, log in, tap Search Dashcam, choose the camera, click Connect, and then Join. Adjust the lens position.

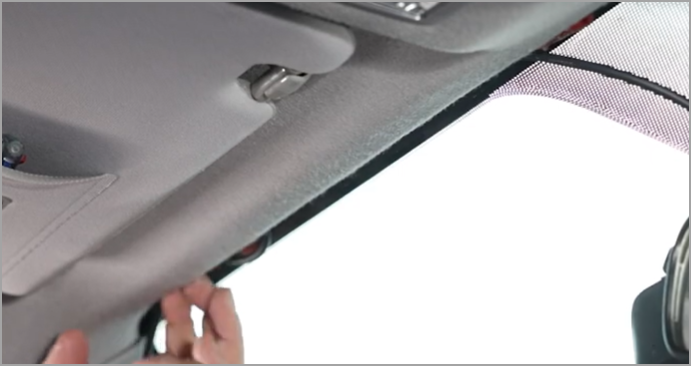

8. Organize and tuck the wire into the vehicle's trim to ensure driver safety.
