Using an SD Card with the RZ1 Hub

Using an SD Card with the RZ1 Hub

This article explains what the SD card is used for, how to install it, when it’s needed, how to enable it in the Fleet App, and how to format it if necessary.

What is the SD Card Used For?

The SD card is used to extend the RZ1’s memory capacity and increase the amount of video footage that can be recorded and stored locally. While the SD card is optional for the base RZ1 device, it is required for the operation of auxiliary cameras.

How to Add the SD Card

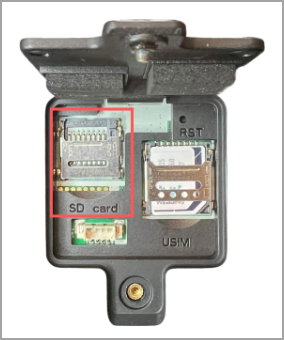

  1. Locate the cover at the bottom of the RZ1 Hub

  2. Remove the screw and open the cover

  3. Insert the SD card into the internal slot until it clicks

  4. Close the tamper cover

  5. Re-secure it with the screw



NotesNote
Once inserted, please let us know so that we can enable SD card recording and format the card to begin saving footage by emailing support@hdfleet.com.
