What is in the RZ1 Dash Cam Box?

What is in the RZ1 Dash Cam Box?

Before we begin, make sure you have received all these items in your box:

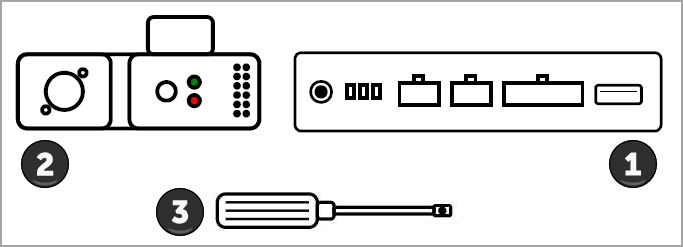

Main Package:

The primary package includes the core components necessary to get your RZ1 system operational:
  1. RZ1 Vehicle Hub: The central unit responsible for collecting vehicle telematics data and managing connectivity between the system and the cloud.

  2. RZ1 Camera: A dual-lens dashcam offering both road-facing and cabin-facing views, ensuring comprehensive video monitoring for fleet management.

  3. Safety Screwdriver: A specialized tool provided for securing and adjusting the system during installation.

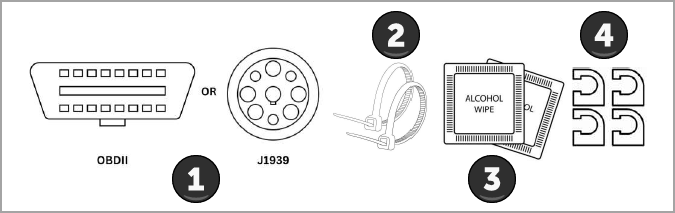

Installation Kit:



For a complete and professional installation, the following accessories are available in the installation kit:
  1. Power Cable: Connects the RZ1 Vehicle Hub to the vehicle's diagnostic (OBDII) port, supplying power and enabling telematics data collection.

  2. Zip Ties: Helps organize and secure cables, ensuring a neat and safe installation.

  3. Alcohol Wipe: Cleans the windshield surface to ensure optimal adhesion of the dashcam's 3M mounting pads.

  4. Cable Clips: Keeps cables firmly in place, preventing interference with the vehicle's operation or driver safety.
