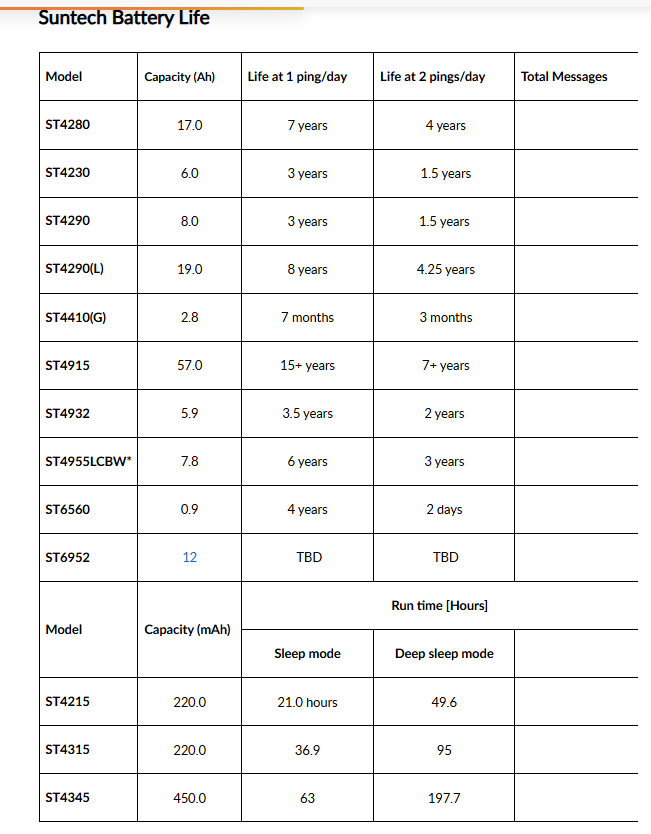

Suntech Battery Life Chart
This article was put together to provide the expected life cycle of a battery in our Suntech devices in a normal situation.
Alert
Heat or other factors could affect the duration and longevity of the battery.

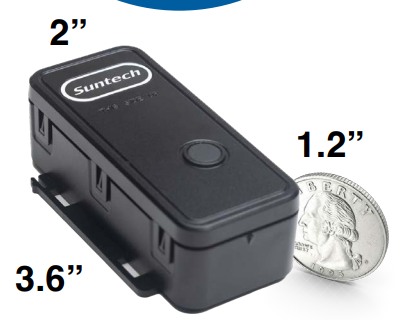

4290 Unit: ( This unit has been replaced with a slightly larger unit called the 4932/Advantage is it recharges with a USB Cable)
With a small compact design, the 4290 series can easily be hidden on an asset. IP67 rated with replaceable batteries. It has 8,000 mAh.
Note
Replacement Battery Cost - $25 (Self Install by Customer)
Ping Intervals per Day | Time (Approximate) |
1 | 5 years |
| 2 | 2.5 years |
3 | 1 year and 8 months |
4 | 1 year and 3 months |
5 | 1 year |
6 | 10 months |
7 | 9 months |
8 | 8 months |
9 | 7 months |
10 | 6 months |
11 | 5 months |
12 | 4 months |
We recommend no motion is set since motions sends multiple pings per trip. This should not be used as a vehicle tracker, but an asset tracker that usually needs to check in once or twice in a 24 hour period*

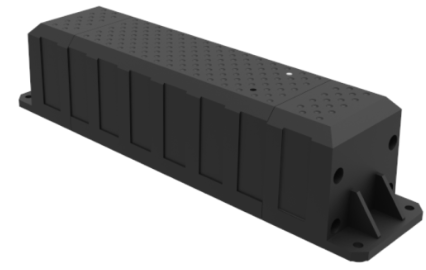

4910/4915 Unit:
This unit is about the size of a brick. It is tough and meant to be on assets that don't move much. IP67 rated with replaceable batteries. It has 57,000 mAh.
Note
Replacement Battery Cost - $60 (Self Install by Customer)
| Ping Intervals Per Day | Time (Approximate) |
| 1 | 10 years |
| 2 | 5 years |
| 3 | 2.5 years |
| 4 | 1.25 years |
| 5 | 228 days |
| 6 | 114 days |
| 7 | 57 days |
| 8 | 30 days |
| 9 | 25 days |
| 10 | 20 days |
| 11 | 15 days |
| 12 | 15 days |
We recommend no motion is set since motions sends multiple pings per trip. This should not be used as a vehicle tracker, but an asset tracker that usually needs to check in once or twice in a 24 hour period*
