How to Adjust the Viewing Angles of an Auxiliary Camera

How to Adjust the Viewing Angles of an Auxiliary Camera

Once you've connected the auxiliary camera to an ignition power source, paired it to the dashcam and mounted it, you can adjust the viewing angles. Cameras with different viewing angles enable live view and recording of additional perspectives during trips.

Adjusting the Viewing Angles of a Flush-mount Camera

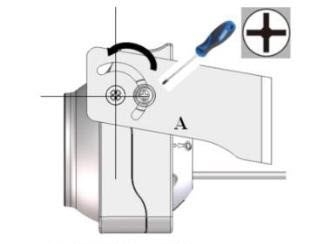

  1. Loosen the screw on each side of the mounting bracket using a Phillips-head screwdriver.

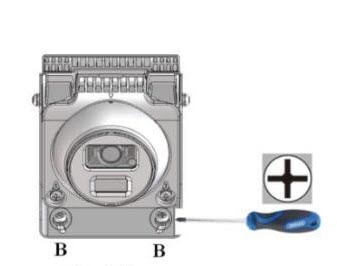

  2. Loosen the screws on each side of the lens at the bottom of the camera using a Phillips-head screwdriver.

  3. Adjust the lens.
  4. Check the viewing angle of the lens through the HD Fleet tracking platform.
  5. Tighten the screws.

Adjusting the Viewing Angles of a Wrap-mount Camera

Note
Wrap-mount cameras are also known as side cameras.

  1. Loosen the screws on each side of the lens at the bottom of the camera using a Phillips-head screwdriver.

  2. Adjust the lens
  3. Check the viewing angle of the lens through the HD Fleet tracking platform.
  4. Tighten the screws.
