How to Connect the AI-12 Dash Cam to an OBDII Port

How to Connect the AI-12 Dash Cam to an OBDII Port

To utilize all the features of the AI-12 dash cam, including Standby mode, it must be connected to a constant power source. The dash cam should only be connected by using the provided power cables. If the installation is canceled and the dash cam has power, power it off to avoid draining the battery.

Warning

This installation must be performed by a qualified or professional person. Working with your vehicle's power system can be dangerous. Please consult a professional for guidance.

Note

While in Standby mode, you can retrieve recordings from the dash cam.

To Connect the Dash Cam to the OBDII Port:

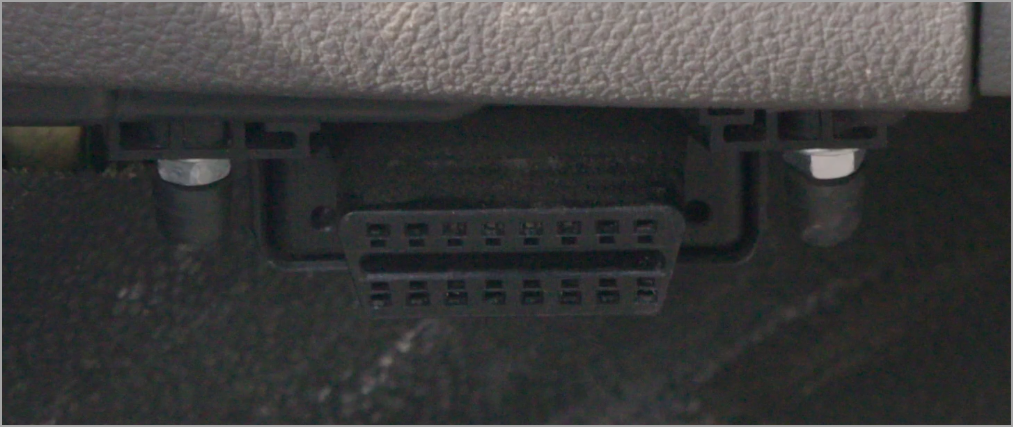

1. Locate the engine diagnostic port.







   The port is usually found in the driver area, at or below knee level.

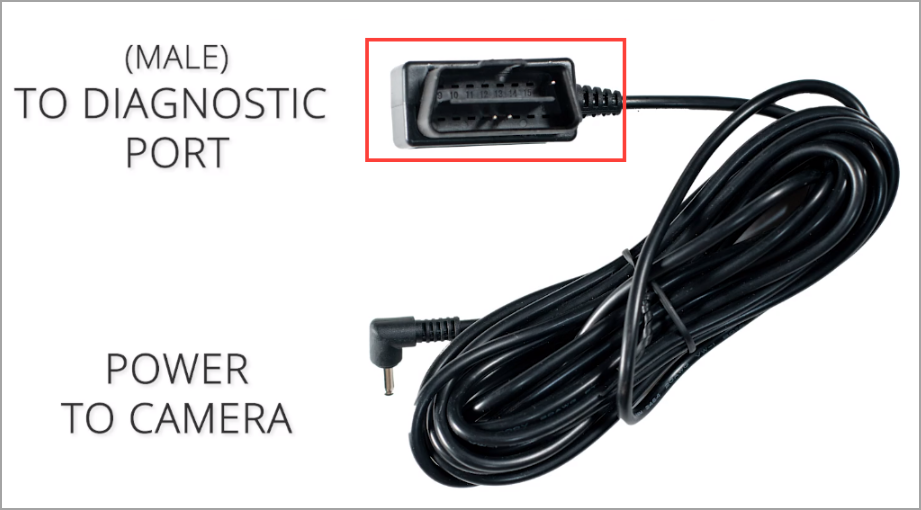

2. Align the connector end of the OBDII cable with the engine diagnostic port.



   Connectors can vary by vehicle. If a different one is needed, please contact us.


3. Push the connector into the port.




   Note
   Ensure that the OBDII port is plugged in securely.

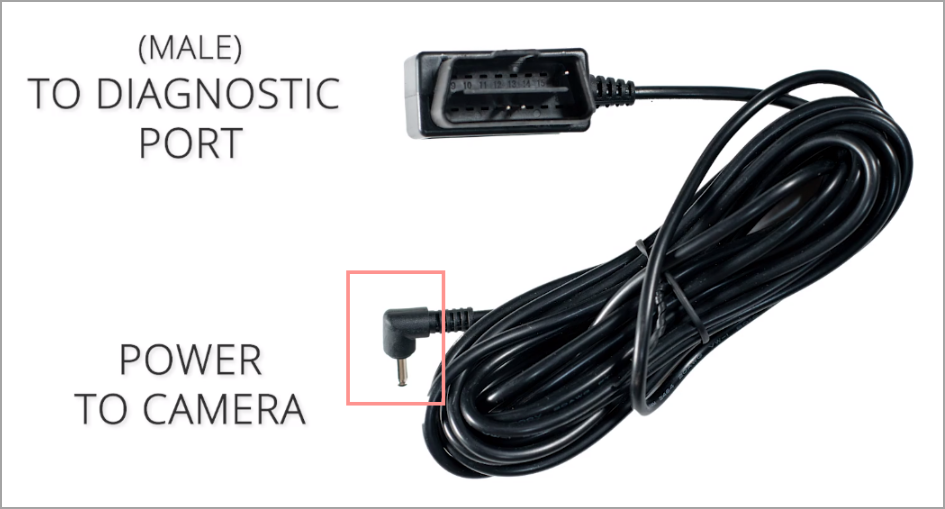

4. Connect the OBDII cable to the dash cam.




5. Start your vehicle to test out the dash cam.


6. Once you have tested your dash cam, run the power cable along the headliner from the A-Pillar to the power source.
